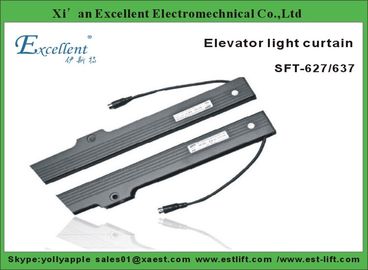

Model No.:SFT-627/637
Infra-red detection combined in a Mechanical Safety Edge
Reasonable dimensions of Safety Edge enable it suitable for most brand elevator
If Infra-red detection go wrong,it switches to Mechanical Safety Mode
Faults tolerance feature.automatically shield the faulted diodes and remind the users
Passed Germany TUV tests,and comply with related international standards
Beautiful external appearance ,easy installation,suitable for most brand elevators
Applying reliable MCU microchip.reasonable design and stable performance
CPU divulse synchronization,achieving better EMC/EMI performance
Advanced technics and equipments,reliable SMT surface padding techniques
Applying appropriate cables and connection-pegs enable them have long working life
|
TECHNICAL SPRCIFICATIONS |
|||
|
Model |
SFT-627 |
SFT-637 |
|
|
Number of diodes |
17 |
32 |
|
|
Distance between diodes |
118mm |
59mm |
|
|
Maximum beams (distance≥400mm) |
96beams |
154beams |
|
|
Minimum beams (distance＜400mm) |
33beams |
94beams |
|
|
Highest beam |
1840mm |
||
|
Lowest beam |
23mm |
||
|
Size |
25mm(thickness)x70mm(width)x2000(height) |
||
|
Detecting distance |
0-4000mm |
||
|
Vertical displacement at 0mm |
±20mm |
||
|
Horizontal displacement at 0mm |
±3mm |
||
|
Angular displacement at 0mm |
±10degrees |
||
|
Cable reliability |
20 million door movements |
||
|
Light immunity |
≤100000LUX |
||
|
EMC compliance |
Emissions to EN12015,Immunity to EN12016 |
||
|
Operating temperature range |
-20℃~+65℃ |
||
|
IP rating |
IP54 |
||
|
Vibration test |
Random vibration 20 to 500Hz 0.002g2/Hz 4hrs per axis Sinusoidal 30Hz 3.6 rms 30mins per axis |
||
|
Response Time (NON or PNP) |
45ms |
65ms |
|
|
Response time (Relay) |
60ms |
80ms |
|
|
Timeout Function |
15Sec 3 non-adjacent diodes |
15Sec 5 non-adjacent diodes |
|
|
POWER SUPPLY UNIT(see detailed information in Page 31) |
|||
|
Model P220 |
Input voltage 220V AC±20% 4VA |
||
|
Model P110 |
Input voltage 110V AC±20% 4VA |
||
|
Model P110/220 |
Input voltage 110/220V AC(Switchable) 4VA |
||
|
Model P110/220-W |
Input voltage 85~265V AC(Switchable) 4VA |
||
|
Model P12/24 |
Input voltage 10~35V DC 4VA |
||
|
Model P24 |
Input voltage 19~36V DC 4VA;18~30V AC 4VA |
||
|
System Hint (Buzzers are optional)Mode 1:Give buzzer sound once interrupted. |
|||
|
PNP/NPN (Without power supply unit)(see detailed information in Page 32) |
|||
|
Input voltage |
15~35V DC 3VA |
||
|
Output modes |
PNP-N/C:High level effective, Normal output high,Interrupt output open(Invalid level) |
||
|
Output modes |
PNP-N/O:High level effective, Normal output open(Invalid ),Interrupt output high |
||
|
Output modes |
NPN-N/C:Low level effective, Nomal output low,Interrupt output open (Invalid level) |
||
|
Output modes |
NPN-N/O:Low Level effective, Normal output open (Invalid level),Interrupt output low |
||
|
Output currents |
Maximum 500mA(Can drive small load such as relay) |
||
