| Type: | Elevator Parts | Usage For: | Over Loading |
|---|---|---|---|
| Keywords: | Load Cell | Power Supply: | AC/DC 24V |
| Original Place: | China | Supply Ability: | 10000 Piece /Month |
| Delivery Time: | 7-10 Working Days By DHL,EMS,Container Ets | Business Type: | Manufacturer |
| Model: | EWD-L-J2 | Certification: | ISO9001 |
| MOQ: | 10 SETS |

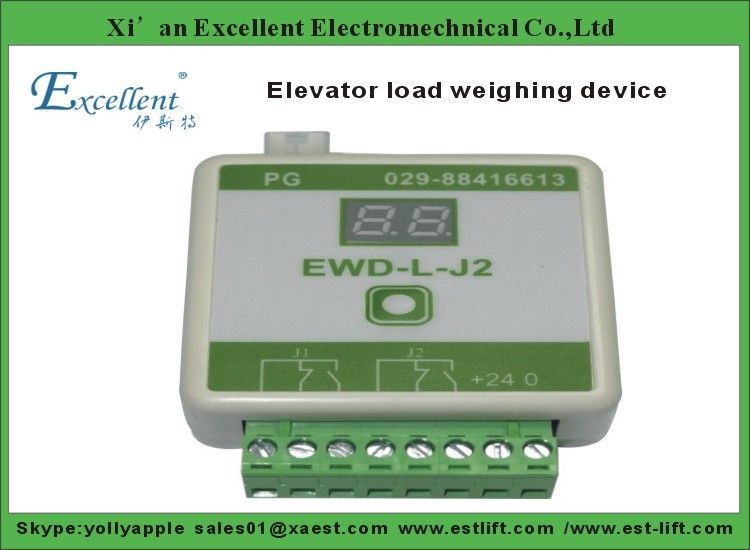

EWD-L-J2 Controller and load sensor ,elevator load weighting device ,load cell
Declaration:
In any case, our part is only responsible for the quality of products in warranty period.
Description:
1. State Indication － Flickering:About “Once per Second”；
2. Button Operation － Press:Press and release soon；Hold:Press constantly；
3. Relay － Keep the state of Picking-up in the period of system being unadjusted or faulty；
Main Features:
1. With the adoption of integrated designing of “C: Concave type sensor”, it can be welded directly on elevator car bearing beam;
2. Directly outputting full-load or overload signal depending on the change of elevator car payload
3. Simple adjustment, high precision of measurement and quick and easy installation.
Technical specification:
|
⒈ |
Application Range |
Being applicable to all elevator with payload of 500㎏～20000㎏ for full-load and overload signal |
|
⒉ |
Sensitivity |
For the elevator with rated load of 1 ton, it is 5Kg |
|
⒊ |
System Error |
≤1.5％(5～40℃) |
|
⒋ |
Output Mode |
Switching Signal:Full-load and overload Dynamic Close and Dynamic Open contact |
|
⒌ |
Operation Temperature |
-25～55℃ |
|
⒍ |
Power Source |
DC 24V(±10%),Operating current for the whole set≤100mA |
Intensity exceeding the above listed parameter limits may cause the system abnormality or its permanent damage.
Description of Other Indication States:
|
|
Display Code |
Implication |
Solution |
|
|---|---|---|---|---|
|
1 |
FY |
System Startup |
||
|
2 |
PC |
Sensor Resetting |
||
|
3 |
PP |
Get into the status of operation parameters modification |
||
|
4 |
Lo |
Ready for Autotuning Operation |
||
|
5 |
PL |
Autotuning No load parameters |
(Static Displaying represents preparative status,twinkling displaying for the end of testing |
|
|
6 |
PH |
Autotuning Rated load parameters |
||
|
7 |
EL |
No payload is detected by sensor |
Check the cable of the sensor, system power and payload |
|
|
8 |
EH |
Exceeding the measuring range of maximum load |
||
|
9 |
Pn |
Saved |
|
|
|
10 |
EA |
Saving Failure |
Remodify the operation parameters |
|
After system commissioning, press and hold 【◎】 in normal operation,〖J1〗／〖J2〗will flicker alternately,at this time, J1/J2 outputs alternately.
Promise:
1. If this system appears any quality problem of product itself in 1 year after delivery, it will be replaced freely(damage of the product seal will not be treated).
2.For any system abnormality in adjustment or operation, please contact our company directly.
Others:
|
Packing List |
Controller of EWD-L-J2 Elevator Loading Device |
1 |
Type EWD-GC:sensor and its accessories |
1 Set |
|
Screw Sets M4 X 40 |
2 Sets |
System Instruction Manual |
1 Copy |
